£2,221.00 – £2,459.00 Ex VAT
Flat Tank F-Line 3000 litre underground garden rainwater harvesting system kit. The unique F-Line flat shallow dig tank, supplied complete as a kit for use as a garden rainwater harvesting system. Collect, filter, store and pump cooled rainwater to your valuable garden plants. Mainland UK delivery included.
Trade and Self Build discounts available. Call 01733 405111 Option 1
Flat Tank F-Line 3000 litre, Complete System 1 underground KIT includes a 3000 litre shallow dig underground tank, inline filter and overflow kit, Hydroforce Series 4 pump and the accessories needed to deliver clean rainwater to a garden tap. Some standard external pipework and connectors will be needed but are not included in the kit as the location of the system will determine the amount of pipework required.
1. Our Rainwater Harvesting Systems are based on the highest quality, rotationally moulded, one piece tanks, installed without the need for concrete, thereby minimising installation costs and supported by the manufacturers 25 year guarantee.
2. Minimum installation depth
3. Easy and quick to install
4. Small excavation pit and little earth excavation preserves your garden
5. Ideal for installation in new or exisiting properties
6. Can be installed in ground water up to the shoulder of the tank body
7. Market leaders in the Rainwater Harvesting Domestic Market
Shallow Dig F-Line Tank
635mm F-Line Shaft
Pedestrian F-Line Lid
Rain Vantage Filter*
25m x 25mm RWH Pipe
Rainwater Label Pack
Delivery to Mainland UK
*Please note that the Rain Vantage Filter also incorporates the calmed inlet and overflow siphon. This is factory fictory to reduce install time on site.
The F-line flat tank can be installed into much higher water tables than a standard round tank. If you don’t know what your water table will be like in the winter, you’re safer to install a flat tank.
The F-Line tanks are flat and the installation depth is 60% less than other rainwater tanks. The excavation can be up to 70% less, meaning little earth excavation, easy handling and less cost for you! The small excavation pit is easily filled in and your garden will look just like it did before.
HydroForce ™ Rainwater Harvesting Clean Water Pump Series 4 is a submersible pressure sensitive rainwater tank pump – electronically controlled, centrifugal roto-dynamic with no reciprocating parts. Built-in non-return valve and double dry-run protection.
Manufactured in the UK and designed for rainwater harvesting systems.
External HDPE Rainwater Pipe included. It is important to identify a source of a water supply. Untreated rainwater is not for human consumption and so water companies are recommending (and in some cases requiring) that Black and Green HDPE pipe is used for piping rainwater from the tank to the point of use – eg. garden tap.
The point of use should be clearly labelled to show that rain water is the source. We include 25mm black and green hdpe pipe and labels with this kit with the option to buy further rolls of pipe.
Introducing the Rain Acculevel smart meter for rainwater tanks
The Rain Acculevel will accurately measure the water level in your rainwater tank giving readings that you can view on a PC or smart device. Using the latest wireless technology it works on tanks below or above ground and over long distances.
The level is measured every 15 minutes enabling you to build up a history of your water use.
This will help you manage the use of your rainwater to suit your requirements and the weather conditions.
**Please note this item is not part of the standard kit
235mm Shaft and Pedestrian Lid, 635mm Shaft and Pedestrian Lid, Driveable Shaft and Lid

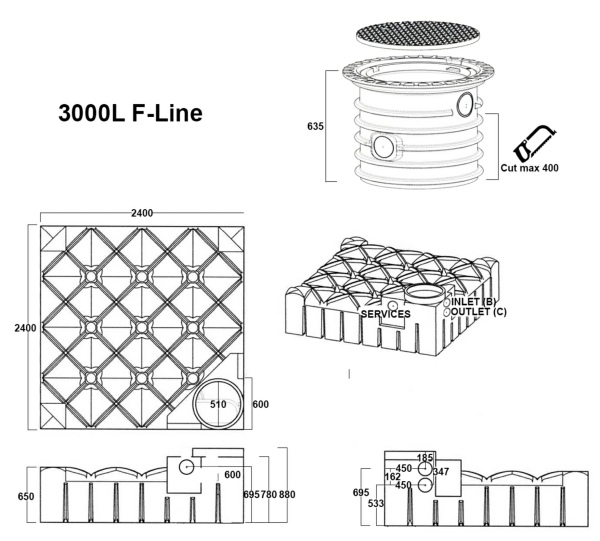

Weight : 170 kg
Length : 2400mm
Width : 2400mm
Overall Height* : 1015 - 1415mm
Ground to invert** : 320 - 720mm
Invert to outlet : 162mm
Length : 2800mm
Width : 2800mm
Overall Height* : 1115 - 1515mm
*Overall height allows for 100mm compacted aggregate
**Using a VS60 (635mm Shaft)
The overall height difference above is because up to 400mm can be cut off the 635mm shaft on site so as to achieve your exact invert level.
DELIVERY OF RAINWATER HARVESTING SYSTEMS
We try where possible to deliver using our own vehicle but in the event of either too greater distance or a booked calendar we may have to deliver using a third party haulier. The delivery is kerbside and the offloading is the responsibility of the customer. We suggest to organise the delivery to arrive whilst you have the digger on site to assist with offload. Our shallow dig tanks can be lifted off the vehicles by hand providing there are enough bodies on site.
The systems are held in stock at our Peterborough warehouse and we normally operate on a 7-10 delivery from receipt of order.
If you have any problems to accept kerbside deliveries or access issues please contact a member of our team on 01733 405111.
